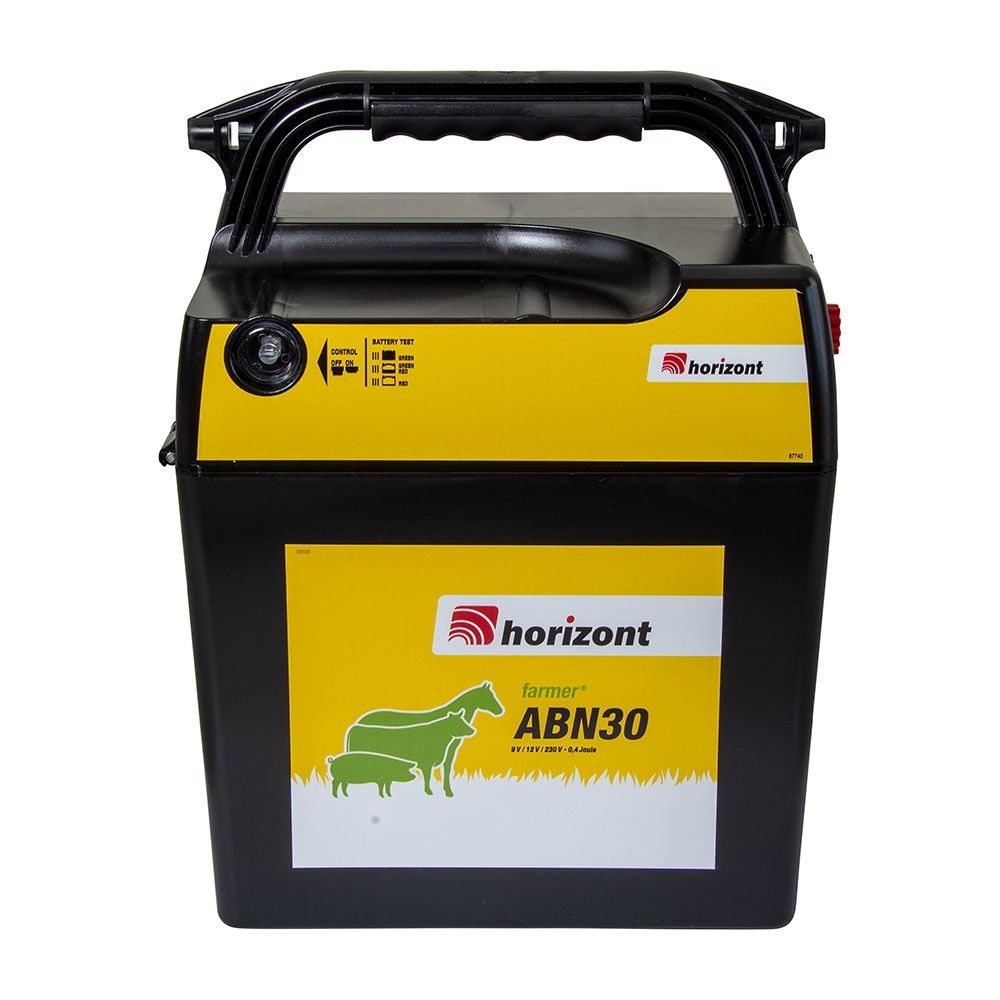

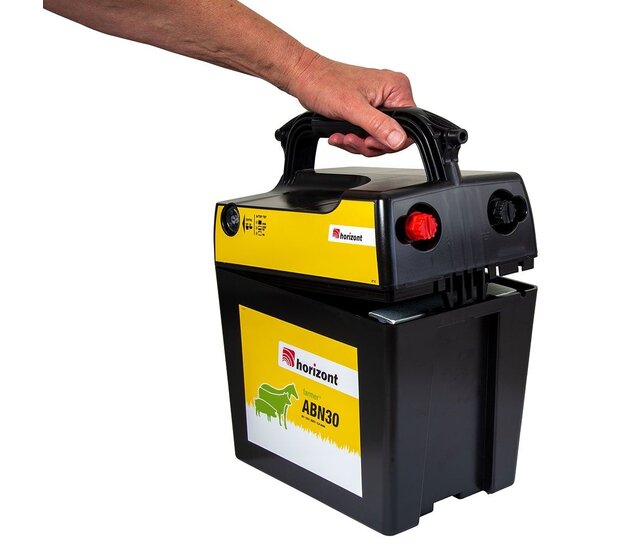

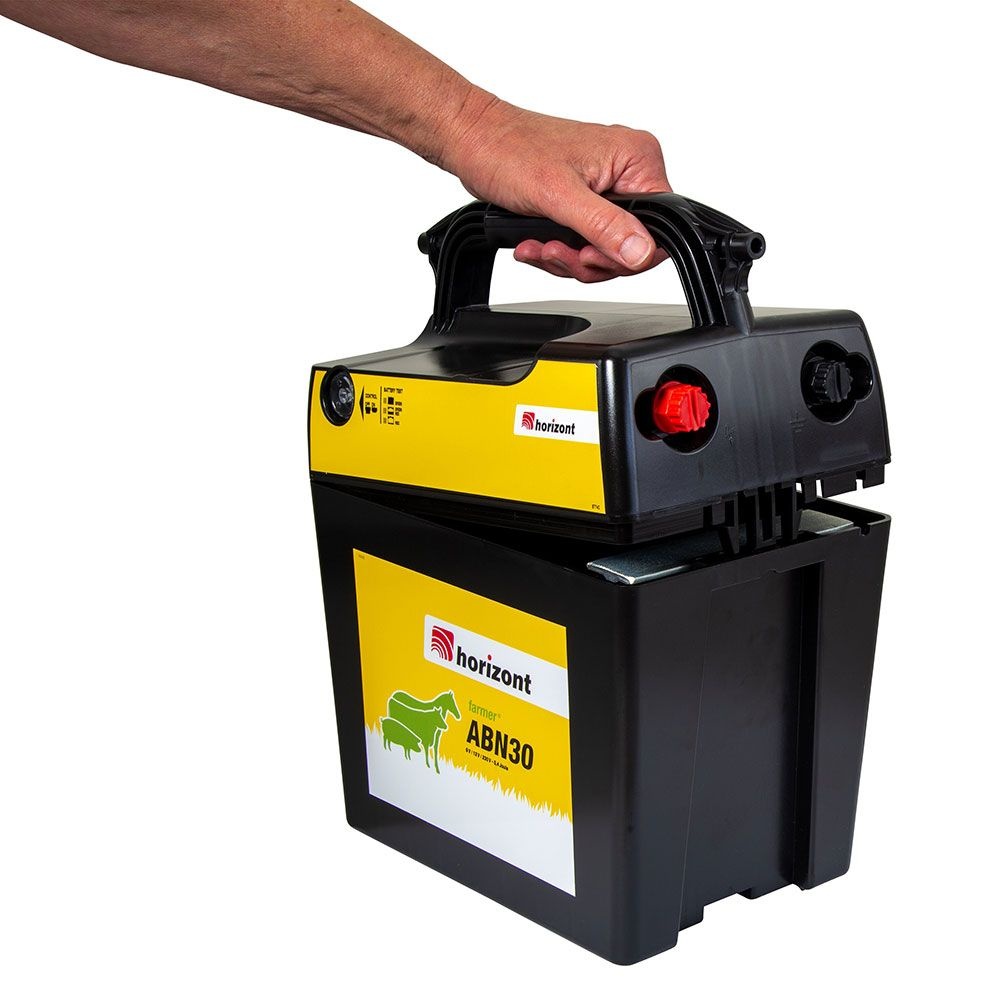

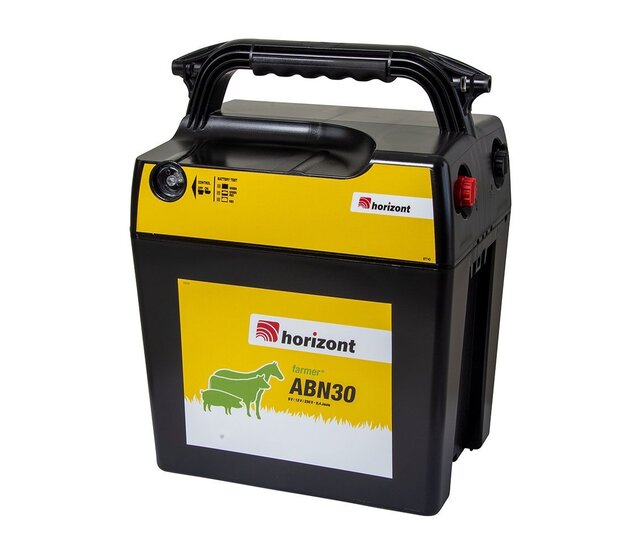

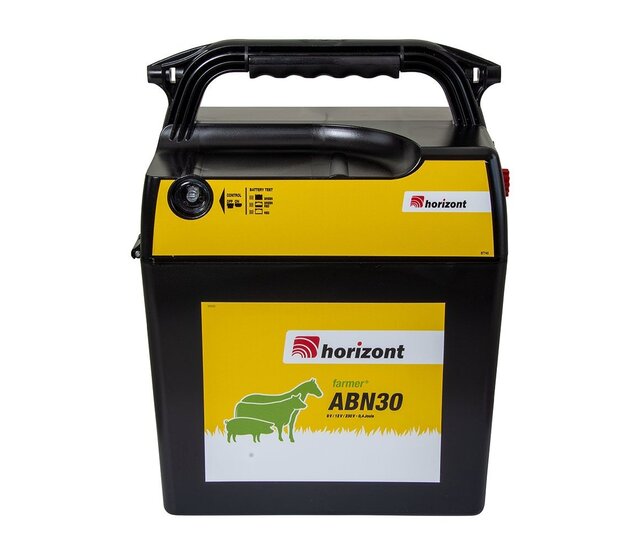

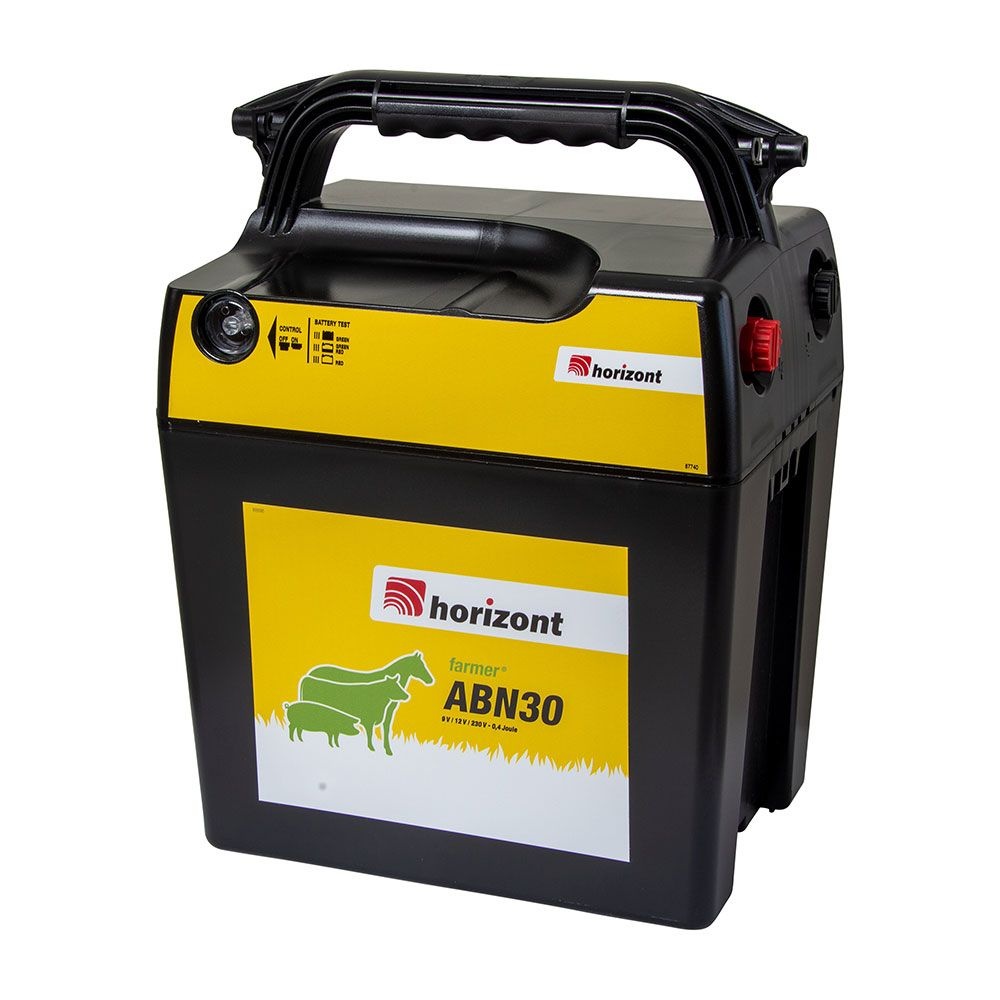

FARMER ABN30 HORIZONT mixed electric feeder

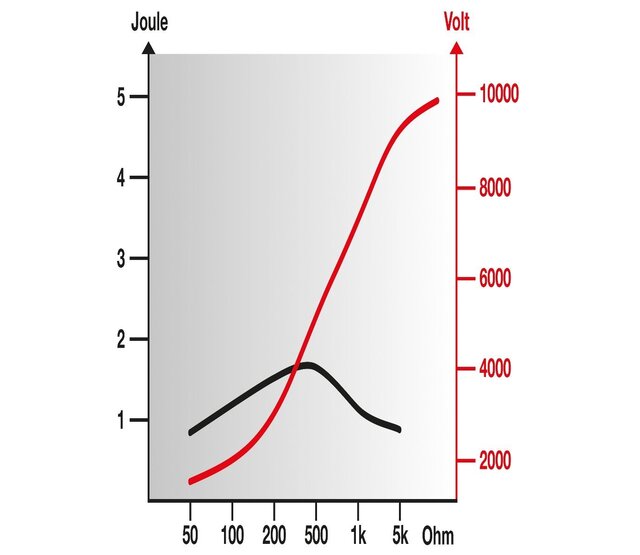

The combined 230V mains, 9V battery and 12V battery FARMER AN1000 is suitable for small fences of up to 5.5 km without vegetation. It will also perform well on difficult terrain with heavy vegetation, up to 0.9 km. The ideal fencing post for your cattle, sheep, goats, horses and small animals. It's easy to use, compact and portable. Its low power consumption means it runs for a long time. It can be used with a 12 V battery and a 230 V mains supply at the same time. It operates mainly from the mains and charges the 12 V battery. In the event of a mains failure, the battery can take over without interrupting the operation of the fence. With load-sensing circuit - the energiser's output and energy consumption adapt automatically to the condition of the fence.

Compatible with rechargeable batteries up to 34 Ah and dry cells up to 200 Ah.

It has a battery control light and LED voltage indicator, so you can check the overall condition of the fence, even over long distances, and summarises the main functions.

It's easy to install and has a solid polycarbonate casing that's highly resistant to impact and UV light.

For use with a solar panel and a 9 V dry cell battery, the energiser runs on solar energy during the day and the battery at night.

For use with a solar panel and 12 V rechargeable battery, the solar module recharges the battery during the day and the energiser runs on the battery at night.

Included with the energiser:

• Fence and earth connection cable with reinforced plastic sheath.
• Earth spike

Supplied without mains transformer. To be ordered separately (ref.9hor47psu0010FEU)

Features :

• Power supply: 9V - 12V - 230V
• Stored energy: 0.4 J
• Energy delivered: 0.3 J

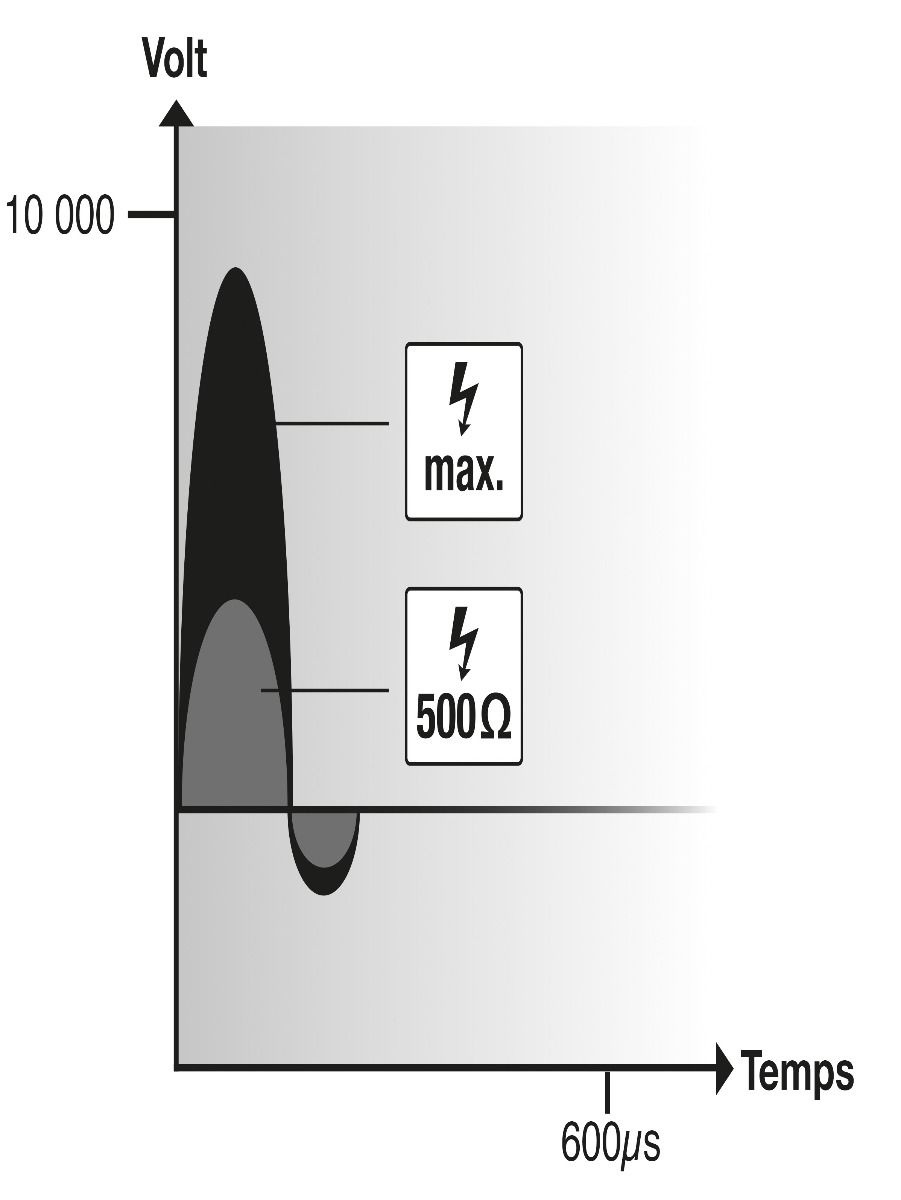

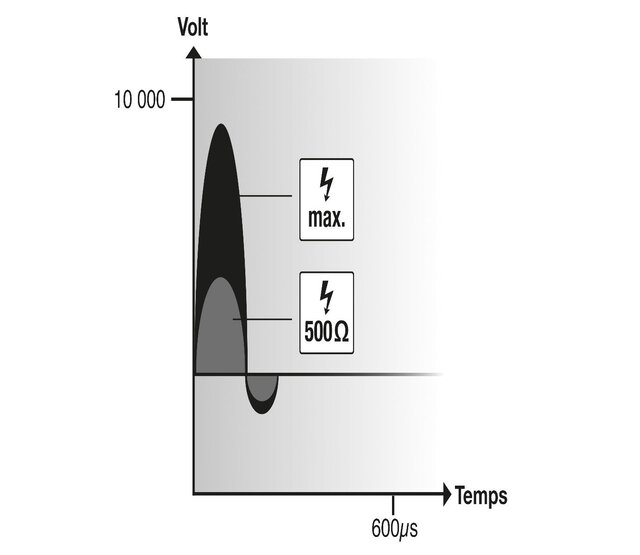

• Maximum fence voltage : 10 000

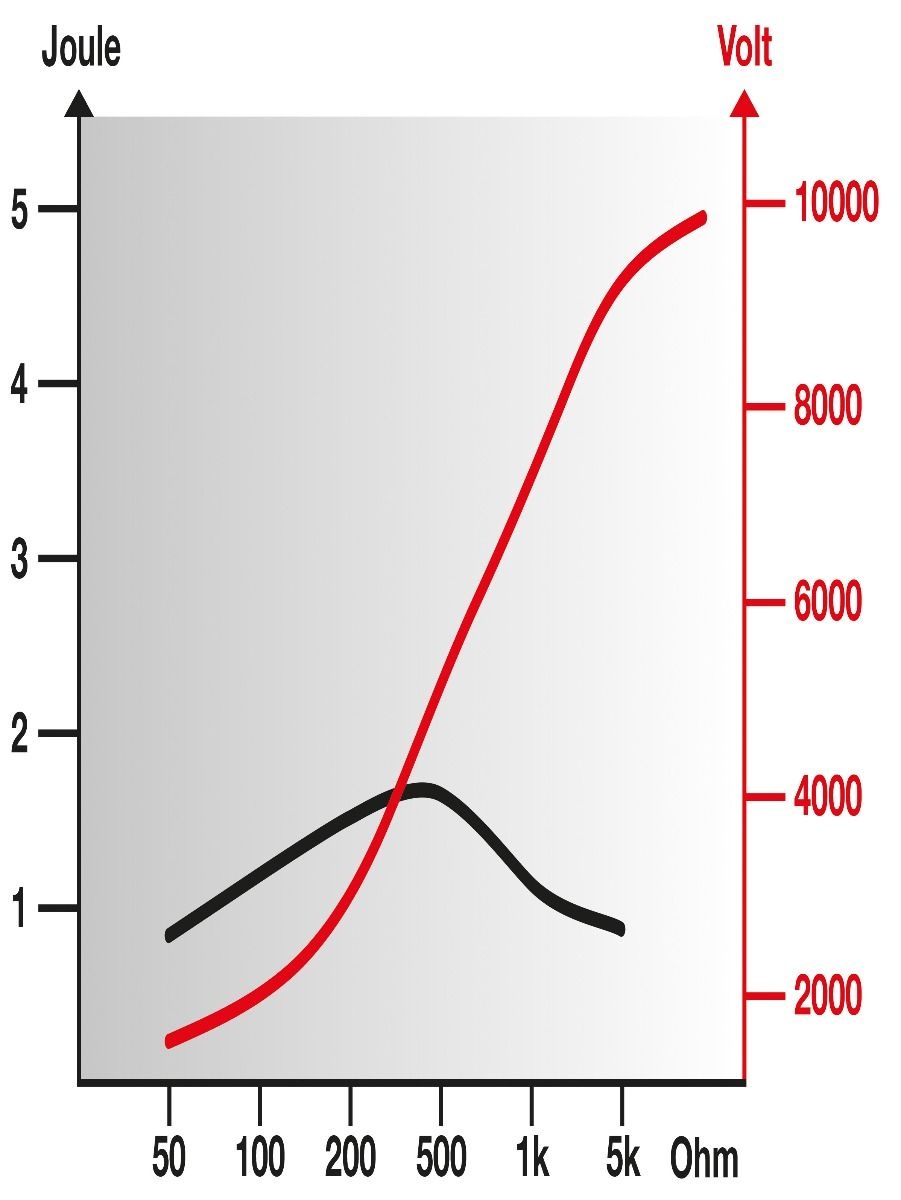

• Voltage under 500 Ohms: 3 300
• Consumption: 22-35 mA / 9 V - 15-28 mA / 12 V
• Maximum distance from fence, EEC standard: 9.5 km
• Distance without vegetation: 5.5 km
• Distance with medium vegetation: 3.8 km
• Distance with heavy vegetation: 0.9 km
• Number of nets: 2 * 50 m
• Recommended ground stake: 1 x 1 m
• Recommended battery: 170 Ah Ref. 125H12012 (see p. 41) 7,727 - 4,857 h (= approx. 321 - 202 days)
• Recommended solar panel: 5W - option ref. 125H14499
• 3-year warranty
